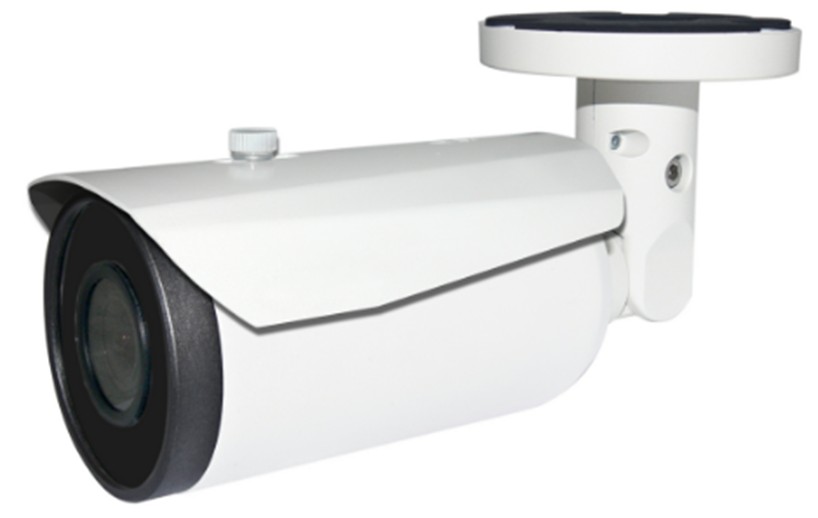

VECON-SRE4CAM is AI camera which uses our breakthrough Deep Learning Technology of Software & Hardware to do real-time full frame rate recognition.  The OCR processing is done inside the camera (Edge Processing).  System integrators can use multiple VECON-SRE4CAM to develop their Container OCR system for Cranes, Top-Handlers, Gates, etc. Car Park system integrators can easily install & deploy the OCR cameras with very less on-site fine-tunning effort which wes the most headache problem during project implementation in the past.

Typical Usages of VECON-SRE4CAM

License Plate Recognition

  1. Traditional vehicle detector trigger and LPR (front or backend OCR)
  2. LPR without vehicle detector
  3. At building gate in/out, simple white list detection and automatic barrier opening
  4. Police Car Patrol of wanted vehicle list detection
  5. Wanted vehicle detection of passing by vehicles at check point
  6. Illegal overtime parking detection at streets
  7. Overtime parking detection of visitor parking at university / estate car parking

Container / ISO Number Recognition

  1. Gate CNR without sensors. Single camera is required for single container while multiple cameras are required for Twin 20’ containers. Additional software development is required.
  2. Crane CNR without sensors. Single camera is required for single container while multiple cameras are required for Twin 20’ containers. Additional software development is required.
  3. Top Handle CNR without sensors. Single camera is required for single container while multiple cameras are required for Twin 20’ containers. Additional software development is required.

Vehicle / Container Detection

Beside OCR, the vehicle / container (without number) can also be detected automatically.  For the cases of damaged LPN or missing Container numbers, images can still be captured.

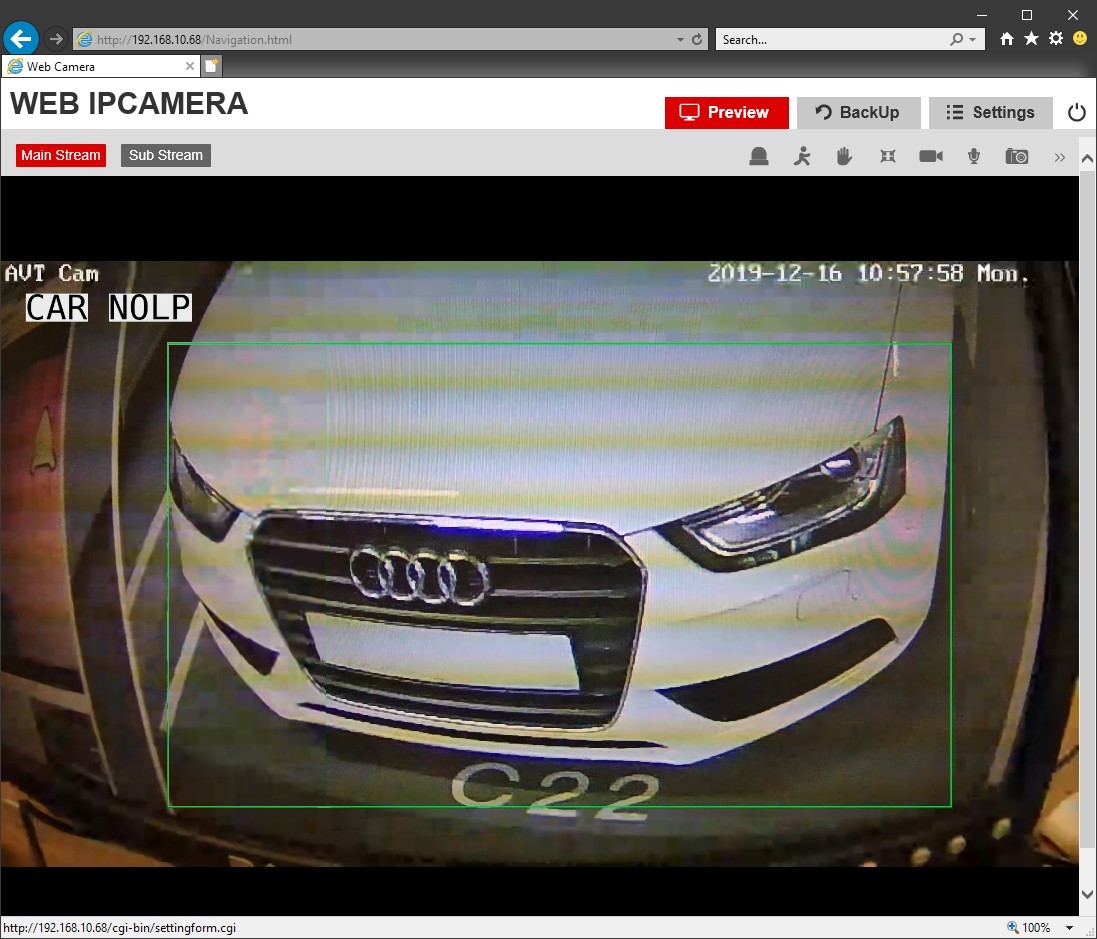

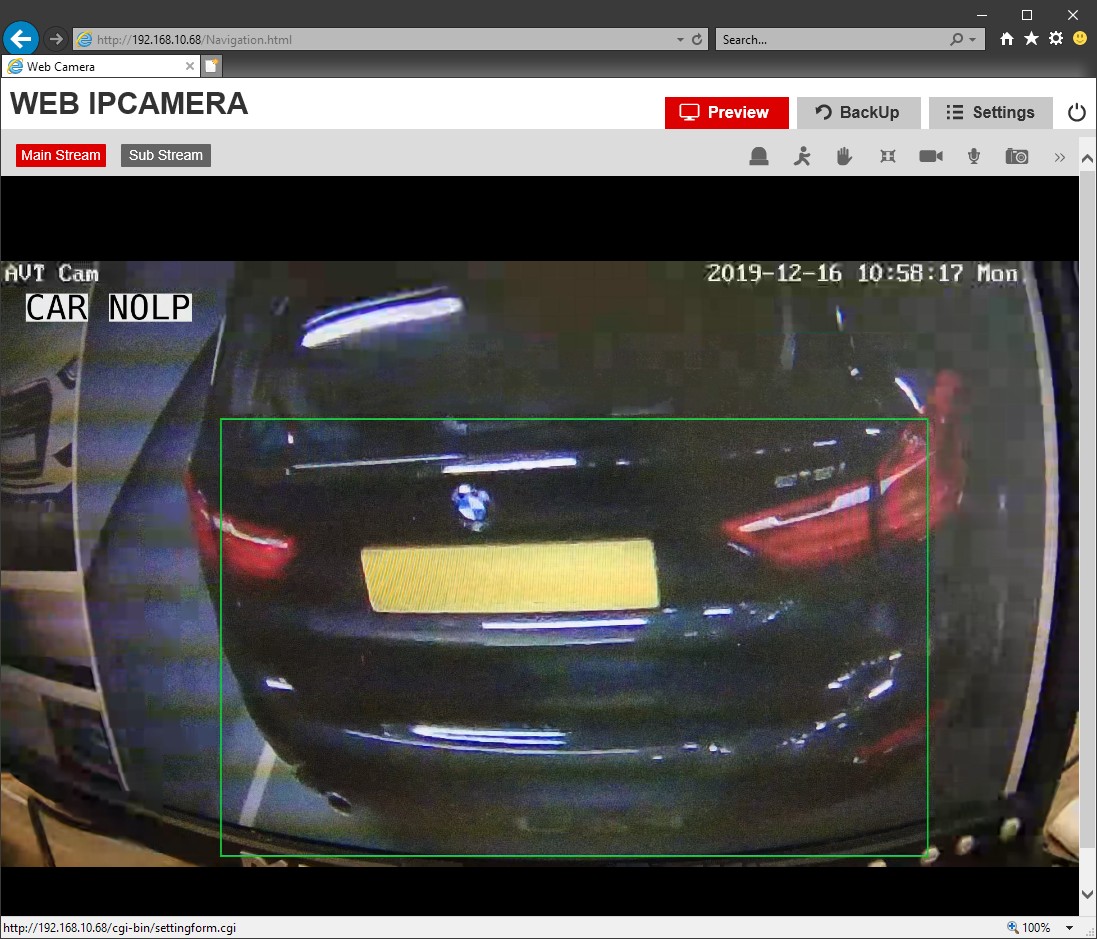

Vehicle detection without LPN
Vehicle detection with LPN

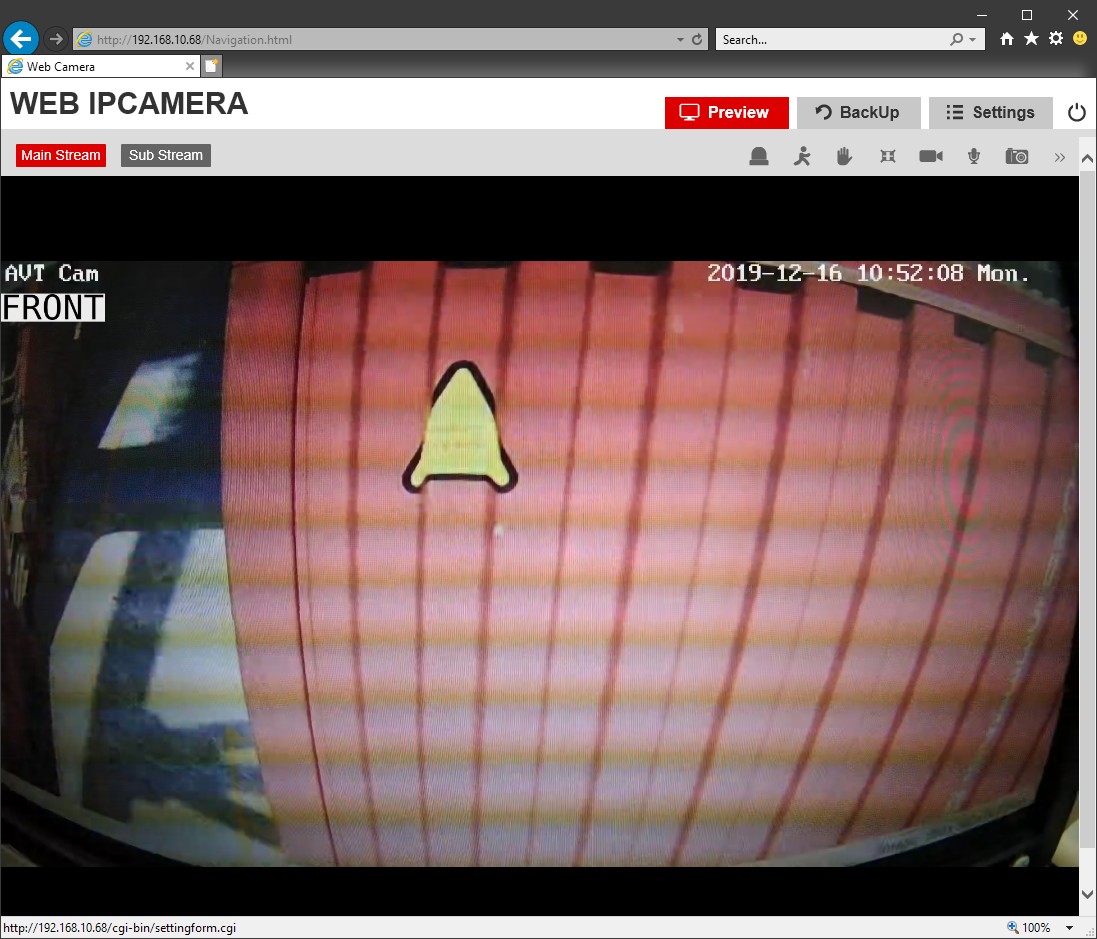

Container Front detection without number

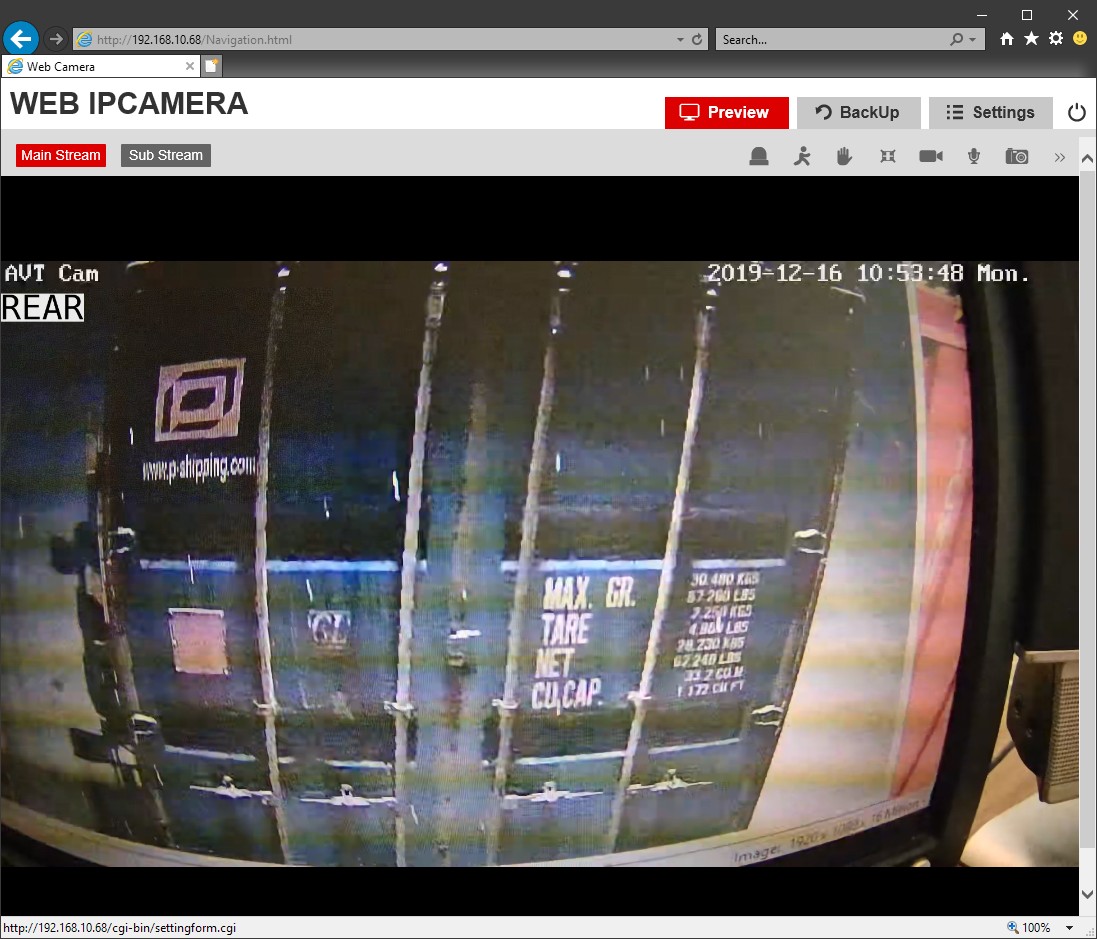

Container Rear detection without number

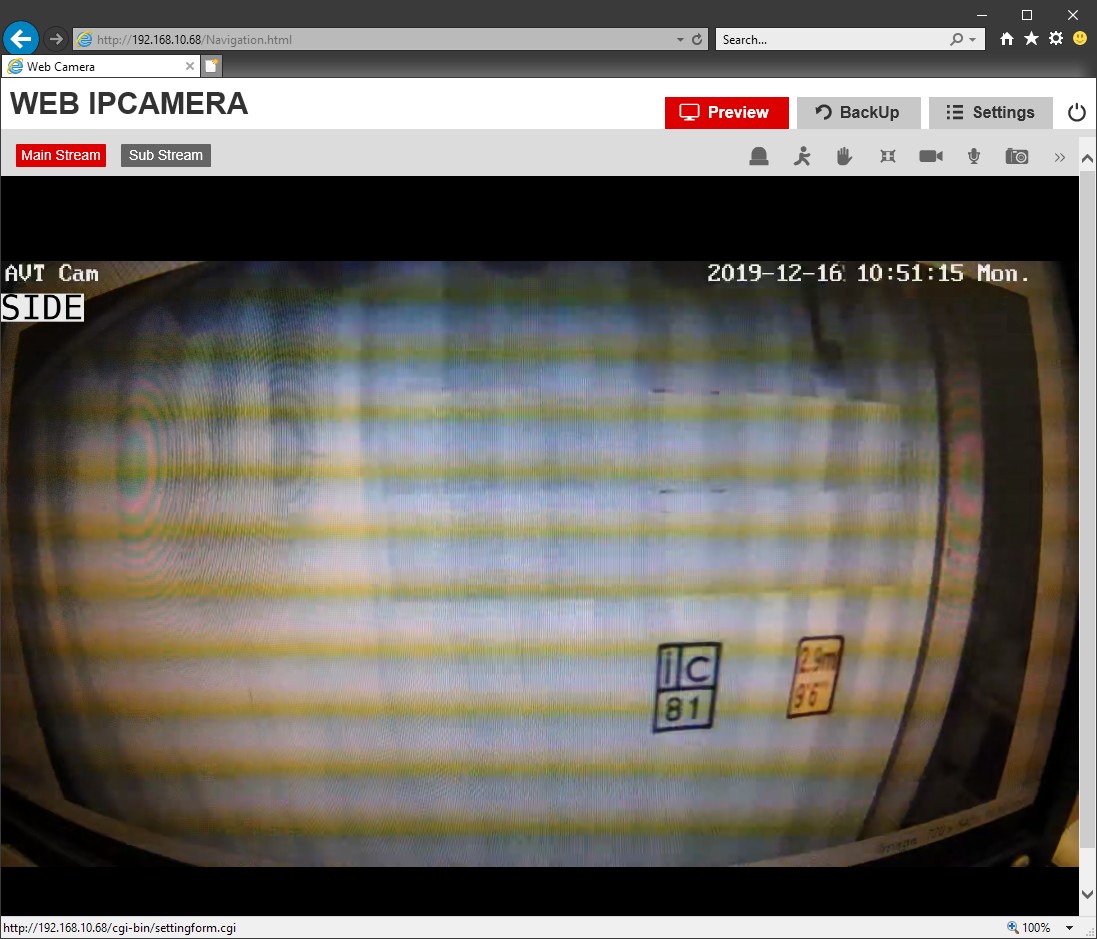

Container Side detection without number

Functional Specifications

FunctionsDescriptions
Image Resolution1920×1080 Progress Scan Colour Images
Video Frame Rate25 to 30 FPS
PlatformHi3516DV300
ProcessorARMv7
Memory512M
Flash128M
SD CardOptional 64G
OCR TechnologyDeep Convolution Neural Network for Plate Detection, Character Extraction, Character Recognition & Format Recognition
OCRThe camera can be pre-loaded with one of the following OCR engines. More OCR engines will be available upon customer request. Container/ISO Number; Hong Kong, Singapore/Malaysia, Taiwan, Indonesia, Vietnam, Brazil License Plate Numbers
Vehicle/Container DetectionVehicle detection without LPN, Container Front/Rear/Side detection without container numbers
Moving DirectionVehicle/Container moving direction detection
AI accelerationNNIE (1 Tops) of HISILICON
Image processing accelerationVGS, IVE of HISILICON
OCR Frame RateCON : 30 FPS (Do not see container number) CON : 12.5 FPS (See container number) LPR : 30 FPS (Do not see license plate number) LPR : 21 FPS (See license plate number)
Software Capture Frame Rate21 FPS
Save ImageJPEG (Quality adjustable)
Internal DatabaseSQLite3 database
Trigger Input1 Dry contact input (Support Trigger delay & Noise Filter)
Relay Output1 Relay output for barrier / alarm control
Alarm In / OutRead Status & Test by Web Interface
Software IntegrationCamera input of VECON-VIS / VECON-CON software, AVT DSP camera protocol for direct integration through TCP sockets, Camera as FTP server for image download
Alarm Detection (LPR only)Hot List and Parking Time Detection,
Alarm Output on detection (LPR only)OSD display of the Alert Message and Relay output & adjustable duration
Hot List Management (LPR only)Search/Add/Delete/Export/Import
Record ManagementSearch/Delete
For further details please see Enquiry and Download
